Specifications

GENERAL

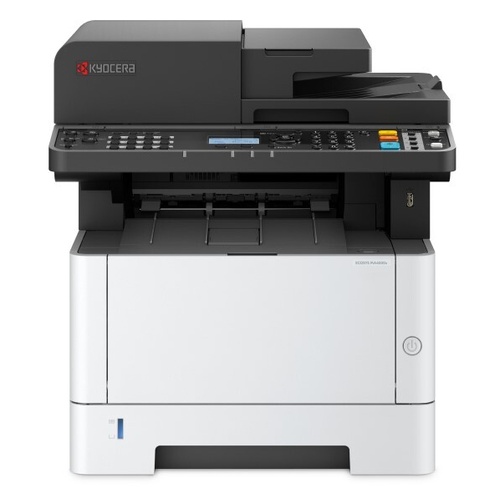

KYOCERA ECOSYS Laser Monochrome Multifunctional

Operational Panel
LCD 21 characters, 5 lines

Recommended Print Volume
Average 2,000 pages per month

Maximum Print Volume
80,000 pages per month

Recommended Scan Volume
Average 830 pages per month

Maximum Life
200,000 pages or 5 years

Engine speed
Up to 40 A4 pages per minute simplex (single-sided),
Up to 20 A4 pages per minute duplex (both sides)

Warm-up time
Approx. 19 seconds or less

Time to first print
Approx. 6.4 seconds or less

Time to first copy
Approx. 7.4 seconds or less (DP), Approx. 6.4 seconds or less (Platen)

Resolution
1200 x 1200 dpi (print), 600 x 600 dpi (scan/copy)

Standard interface
USB 2.0 (Hi-Speed), Network (10BASE-T/100BASE-TX/1000BASE-T), USB host for USB flash memory, slot for optional SD/SDHC card

Safety standards
TÜV/GS, CE
This unit is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard



PAPER HANDLING

All paper capacities quoted are based on paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.

Input capacity
Multi-purpose tray: 100 sheets at 80 g/m2, 60–220 g/m², A6, A5, A4, custom (70 × 148 – 216 × 356 mm). Standard universal paper cassette: 250 sheets at 80 g/m2, 60–163 g/m², A6, A5, A4, custom (105 × 148 – 216 × 356 mm). Max. input capacity with options: 850 sheets at 80 g/m2.

Duplex
Standard duplex unit, two-sided printing, 60–163 g/m², A5, A4, custom (140 × 210 - 216 × 356 mm).

Document Processor
Max. 50 originals, duplex scan, 50-160 g/m², A6, A5, A4, custom (100 × 148 – 216 × 356 mm).

Output capacity
Max. 150 sheets (face-down) with paper f ull detection



PRINT FUNCTIONS

Emulations
PCL 6 (5e, XL), KPDL3 (PostScript 3 compatible), Lineprinter, IBM Proprinter, Epson LQ-850, PDF Direct Print 1.7, 2.0, XPS/Open XPS Direct Print, TIFF Direct Print

Operating systems
All current Windows operating systems, MAC OS X Version 10.9 or higher, Chrome OS, as well as other operating systems on request

Fonts/barcodes
93 outline fonts (PCL6, KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 onedimensional barcodes (e.g. EAN-8, EAN-13, EAN-128), as well as support for two-dimensional barcodes PDF417 under PRESCRIBE (PCL and other barcodes available an option)

Print features
“Proof and hold”*1, Job storage*1, Quick copy*1, Private print*1, Data storage method with PIN code or password*1, Internet printing IPP 1.0, E-mail printing, WSD Print, EcoPrint - toner save mode, AirPrint, Mopria, Microsoft Universal Print, Job batch output, Image Refinement, Pull print, VPSX, IPP PIN Print, Kyocera Cloud Access, optional Kyocera Cloud Print and Scan selected function integration
*1 Optional SD/SDHC memory card is required.

Mobile printing support
KYOCERA Mobile Print app for iOS and Android, AirPrint, Mopria, Microsoft Universal Print



COPY FUNCTIONS

Features
Multiple copies from memory, electronic sorting, blank page skip, line skip, duplex copy, 2-in-1 and 4-in-1 function, split mode, DP auto-cropping, ID card copy supporting auto crop, folded corner detection, continuous scan, priority override, Eco Print (copy) - toner save mode, specific color removal, border erase, auto paper selection, manual and auto background density adjustment, manual and auto reduction / enlargement

Contiuous copying
1-999



SCAN FUNCTIONS

Functionality
Scan to Email, Scan to FTP, Scan to PC (SMB), TWAIN, WIA, WSD Scan, Scan to USB Host, Distributed File System (Windows 2012 server or later), eSCL support (AirPrint, Mopria Scan, Chrome OS)

File types
PDF, PDF/A-1, PDF/A-2, high compressed PDF, encrypted PDF, JPEG, TIFF, (Open) XPS

Features
Active Directory support, LDAP over TLS, internal address book, Multi-sending - simultaneous sending to email, SMB and FTP, file separation, skip blank pages, line skip, folded corner detection, continuous scan, digital signature (PDF, Encrypted PDF), auto color select, scan resolution, specific color removal, border erase, manual density adjustment, saturation adj

Scan resolution
1,200 (with TWAIN and WIA driver), 600, 400, 300, 200 dpi, 256 greyscales per colour





CONSUMABLES

Average continuous toner yield in accordance with ISO/IEC 19752

TK-1274 Toner Kit
Microfine toner black for 10,000 pages A4. Capacity of starter toner is 3,600 pages A4



OPTIONS

PF-1100 Paper feeder (max. 2 units)
Max. 250 sheets at 80 g/m2, 60 - 163 g/m²; A6, A5, A4, custom (105 mm × 148 mm - 216mm × 356mm)



WARRANTY

2 years return-to-base as standard. Optional upgrade to on-site available.



WHATS IN THE BOX

Main unit, starter toner for 3,600 pages, Quick Guide, safety instructions, power supply cord
