Specifications

General type
Colour multifunctional for A4 format

Engine speed
Up to 40 pages A4 per minute in colour and b/w

Warm-up time
Approx. 26 seconds or less

Power consumption
Printing: 532 W Copying: 547 W Ready mode: 84 W Sleep-mode: 0.6 W



PAPER HANDLING

Input capacity
100-sheet multi-purpose tray, 60–220g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 250-sheet Standard universal paper cassette, 60–163 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 – 216 x 356 mm)

Max. input capacity with options
2,000 sheets with 75 g/m2

Duplex unit
Duplex as standard supports 60–163 g/m2, A4, A5, B5, Letter, Legal

Output capacity
Max. 250 sheets face-down with paper full sensor

Document processor
Dual scan document processor: standard 100 sheets 50 - 120 g/m2 A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)



PRINT

Processor
ARM Cortex-A9 Dual core1.2 GHz

Fonts
93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts( Windows Vista), 1 Bitmap font 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print quick copy, proof and hold, job storage and job management functionality

Applicable OS (Print)
All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request



COPY

Copy Max. original size
A4/legal

Continuous copy
1 - 999

Zoom range
25 - 400 % in 1% steps

Preset magnification ratios
7 Reductions/5 Enlargements

Image adjustments
Text + Photo, Photo, Text, Map, Printed document

Digital features
Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page



SCAN

Scan functionalities
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN , WIA , WSD scan

Scan speed
120 ipm (300 dpi, A4, b/w), 100 ipm (300 dpi, A4 colour), 60 ipm (300 dpi, A4, b/w), 50 ipm (300 dpi, A4 colour)

Scan features
Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

Scan resolution
200 dpi, 300 dpi, 400 dpi, 600 dpi (256 greyscales per colour)

Max. scan size
A4 / legal

Scan File type
TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Serchable PDF (optional Scan Extension Kit(A) is required)

Original recognition
Text, photo, text + photo, light text, optimised for OCR



FAX

Compatibility
ITU-T Super G3

Modem speed
Max. 33.6 kbps

Scanning speed
2.0 seconds or less

Scanning density
Normal: 8 dot/mm x 3.85 line/mm (200x100 dpi), Fine: 8 dot/mm x 7.7 line/mm (200x200 dpi), Superfine: 8 dot/mm x 15.4 line/mm (200x400dpi), Ultrafine: 16 dot/mm x 15.4 line/mm (400x400 dpi), Halftone: 256 gray scales

Fax Max. Original size
A4 / legal

Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast



PAPER HANDLING OPTIONS

PF-5150 Paper feeder

Capacity in sheets 550 sheets with 75 g/m2

Dimensions (W x D x H) 380 x 410 x 121 mm

Paper size 60 - 120g/m2, A4, A5, B5, Letter, Legal Custom (92 - 216 x 162 - 356 mm)



CONSUMABLE

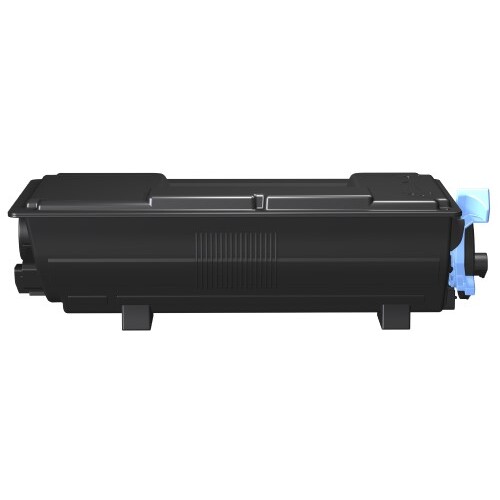

TK-5384K
Microfine toner black for 13,000 A4. Capacity of starter toner is black 6,000 pages. Average continuous toner yield in accordance with ISO/IEC 19798

TK-5384C
Average continuous cyan toner yield 10,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 5,000 pages in accordance with ISO/IEC 19798

TK-5384M
Average continuous magenta toner yield 10,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 5,000 pages in accordance with ISO/IEC 19798

TK-5384Y
Average continuous yellow toner yield 10,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 5,000 pages in accordance with ISO/IEC 19798



OPTIONS

HD-17
64GB SSD storage for easy document management

HD-18
256GB SSD storage for easy document management

HD-19
512GB SSD storage for easy document management

IB-37
Wireless Network Interface (USB: 5GHz/2.4GHz)

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n) (Note: Requires Labour Call Out Fee for Installation)

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

Scan extension Kit (A) AC
Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed

UG-33 AC
ThinPrint support (Licence)

UG-35
TPM (Trusted Platform Module)

USB IC Card Reader + Card Authentication Kit (B) AC
Support for various authentication keys available

1244/10 Cabinet
For 2 draw configuration

AC41366
SD CARD 32GB SDHC CLASS 10 MEMORY CARD - 120MB

MD3-1024
1,024 MB RAM Expansion
