• Description

    Description

    These new A4 colour devices are designed specifically for medium and large-sized work groups, offering both reliability and fast output speeds in both colour and b/w and now complying with the newest environmental standards.

    The convenient touch panels provide simple, direct access to the multifunctionals’ numerous functions. What’s more, dedicated program keys and KYOCERA’s open solution platform HyPAS can help further optimize your document workflow. And for your bottom line it offers you an attractive TCO.


  • SPECIFICATIONS

    Specifications

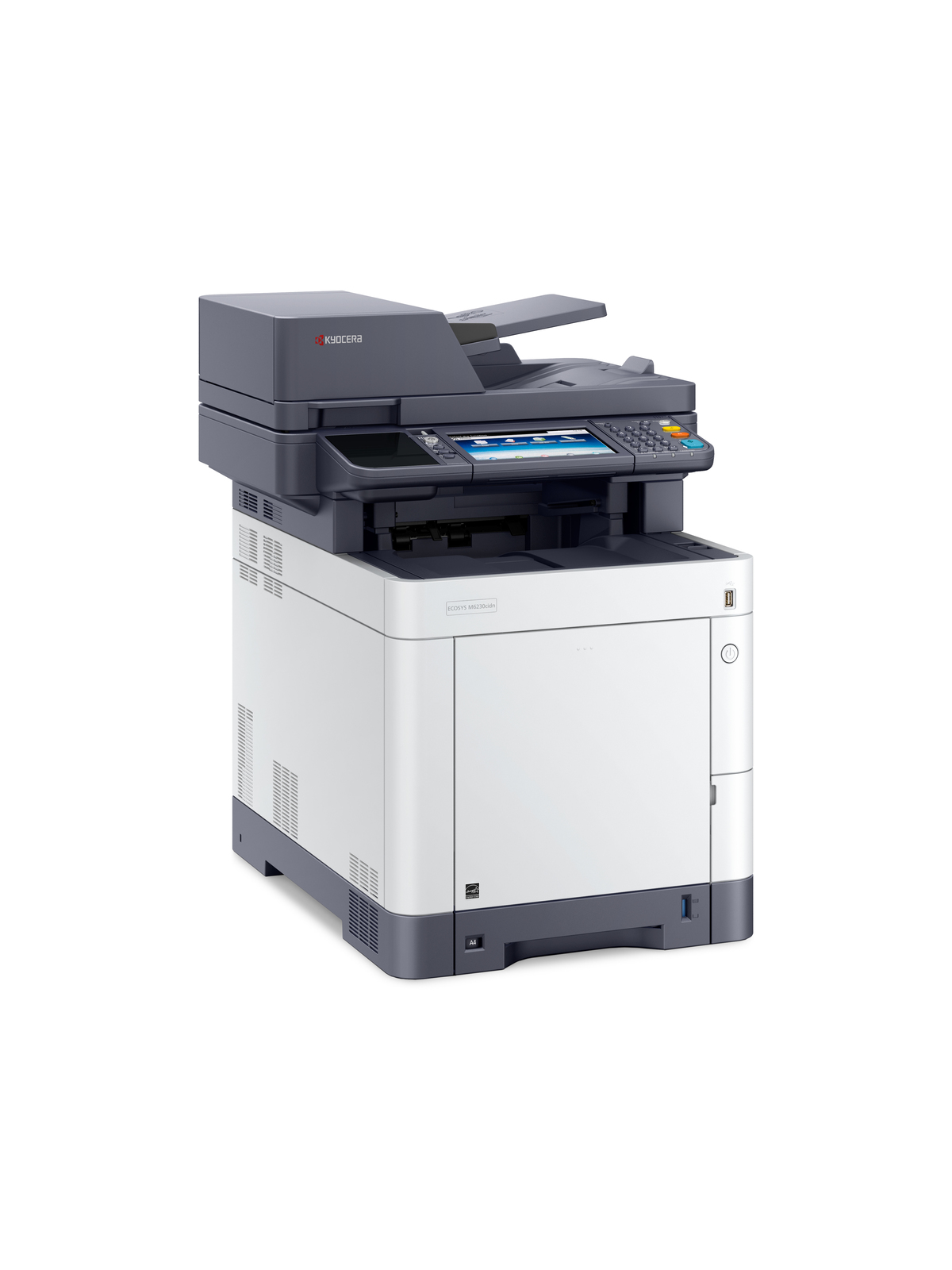

    Title: ECOSYS M6230cidn
    Output Speed: Up to 30 pages A4 per minute
    Duplex print speed: 15 page per minute, A4
    Processor: ARM Cortex-A9 Dual core 1.2GHz + ARM Cortex-M3 100MHz
    Resolution: 1200 x 1200 dpi (print, at reduced speed)
    Memory: Standard 1GB, Max. 3GB + 128GB SSD
    First Copy Time: Approx. 8.5/10 seconds or less in b/w / colour
    Time To Print First Page: Approx. 6.5/7.5 seconds or less in b/w / colour
    Warm Up Time: Approx. 26 seconds or less
    Paper Handling Input: 250 sheet paper cassette + 100 sheet multipurpose tray
    Maximum Paper Handling Input: 1,850 sheets (with optional 3 x PF-5100 Paper Feeders)
    Paper Handling Output: 250 sheets face down
    Output Size: A4
    Duplex: Standard (built-in)
    HDD: Optional: HD-6 SSD (32GB) or HD-7 SSD (128GB)
    Printing: Standard: Network Printing
    Scanning: Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN, WIA, WSD scan
    Scan Speed: 60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi, A4 colour), 26 ipm (300 dpi, A4, b/w) (Duplex), 17 ipm (300 dpi, A4 colour) (Duplex)
    Scan Features: Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
    Zoom: 25–400% in 1% steps
    Emulation: PCL6 (5c/XL), KPDL3 (PostScript 3 compatible), PDF Direct Print, XPS Direct Print
    Standard Interface: USB 2.0 (Hi-Speed), 2 x USB Host Interface, Gigabit Ethernet (10BaseT/100BaseTX/1000BaseT, IPv6, IPv4, IPSec, 802.3az support), optional Wi-Fi (IEEE 802.11b/g/n), 1 eKUIO slot for optional internal print server, Slot for optional SD Card
    Control Panel: 177.8 mm (7 inch) full-colour touch panel display, speaker for job notification, 10° - 20° swivel mounted
    Drum Life: 200,000 pages
    Security: Optional: Data Security Kit (E): In line with ISO 15408 (Common Criteria) with security level EAL2
    Finishing Options: Optional: MS-5100 B Stapler (20 sheets, one position)
    Dimensions & Weight: (W x D x H): 475 x 558 x 616 mm Approx. 35.4 kg
    Warranty: 2 year on-site warranty - extended warranty options are available
    Additional Information:
    This unit is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.
