Specifications

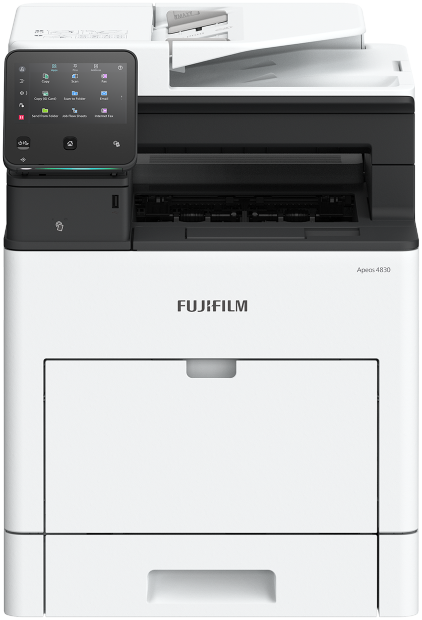

Title FUJIFILM Apeos 5330 / 4830



Basic Specifications / Copy Function

Type Desktop

Memory Capacity 4 GB (Max: 4 GB)

Storage Device Capacity*1 128 GB

Scan Resolution 600 x 600 dpi

Printing Resolution 1,200 x 1,200 dpi

Warm-up Time*2 33 seconds or less (23 degrees Celsius room temperature)

Recovery Time
(Recovery Time from Sleep Mode) 20 seconds or less (23 degrees Celsius room temperature)

Original Size Maximum of A4, Letter, Legal*3 for both Sheet and Book

Paper Size
Max A4, Letter, Legal
Min A6*4 [64 x 127 mm when using Bypass Tray]
Image loss width Lead edge 4.0 mm, Trail edge 4.0 mm, Right/Left edge 4.0 mm

Paper Weight*5
Paper Tray 60 to 220 gsm
Bypass Tray 60 to 220 gsm

First Copy Output Time 6.0 sec. (A4)

Continuous Copy Speed*6
5330 53 ppm
4830 48 ppm

Paper Tray Capacity*7
Standard Standard Tray: 550 sheets Bypass Tray: 150 sheets
Optional 550-Sheet Feeder: 550 sheets
Max 2,350 sheets [Standard + 550-Sheet Feeder x 3]

Output Tray Capacity*7 250 sheets

Dimensions
5330 W 470 x D 500*8 x H 582 mm
4830 W 420 x D 500*8 x H 565 mm

Weight*9
5330 29 kg
4830 27 kg

*1: The Storage Device Capacity is not totally available for customers.
*2: It may change depending on usage conditions.
*3: For Apeos 4830, the Legal size reading is from the Duplex Automatic Document Feeder.
*4: When using A6 size paper with the Standard Tray, the optiona A5 LEF / A6 Tray Guide is required.
*5: It is recommended to use our recommended paper. Correct print output may not be possible depending on the requirement.
*6: The speed may be reduced due to the image quality adjustment.
*7: 80 gsm paper.
*8: The motor part of Duplex Automatic Document Feeder rear is included.
*9: Including Toner Cartridge



Print Function

Type Built-in type

Paper Size
Max A4, Letter, Legal [215.9 x 520 mm when using
Bypass Tray] Min A6*1 [64 x 127 mm when using Bypass Tray]
Image loss width Lead edge 4.0 mm, Trail edge 4.0 mm, Right/Left edge 4.0 mm

Continuous Print Speed*2 Same as the Basic Specifications / Copy Function

Printing Resolution
Standard [PCL Driver] Standard: 1,200 x 1,200 dpi, High Quality: 1,200 x 1,200 dpi, High Resolution: 1,200 x 1,200 dpi
Optional [Adobe® PostScript® 3TM Driver] Standard: 1,200 x 1,200 dpi, High Quality: 1,200 x 1,200 dpi, High Resolution: 1,200 x 1,200 dpi Page

Description Language
Standard PCL5 / PCL6
Optional Adobe® PostScript® 3TM

Supported Operating System*3 Standard [PCL Driver] Windows 11 (64 bit), Windows 10 (32 bit / 64 bit), Windows Server 2022 (64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) [Mac OS X Driver] macOS 12 / 11 / 10.15 / 10.14
Optional [Adobe® PostScript® 3TM Driver] Windows 11 (64 bit), Windows 10 (32 bit / 64 bit), Windows Server 2022 (64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) macOS 12 / 11 / 10.15 / 10.14

Interface
Standard Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB3.0
Optional Wireless LAN (IEEE 802.11a / b / g / n / ac)

*1: When using A6 size paper with the Standard Tray, the optional A5 LEF / A6 Tray Guide is required.
*2: The speed may be reduced due to the image quality adjustment. The printing speed may be reduced depending on the document.
*3: Please refer to our official website for the latest supported OS.



Scan Function

Type Colour Scanner

Scan Resolution 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi

Scan Speed Same as the Scan Speed for the Duplex Automatic Document Feeder

Interface
Standard Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T
Optional Wireless LAN (IEEE 802.11a / b / g / n / ac)



Fax Function (Optional)

Original Size Max: A4, Legal*1

Recording Paper Size Max: A4, Legal; Min: A5

Transmission Time 2 seconds and more but fewer than 3 seconds*2

Transmission Mode ITU-T G3

Applicable Lines Telephone subscriber line, PBX, Fax Communication (PSTN), Maximum 1 port*3 (G3-1 port)

*1: For Apeos 4830, the Legal size reading is from the Duplex Automatic Document Feeder.
*2: When A4 size document with approximately 700 characters is transmitted in standard image-quality (8 x 3.85 lines/mm) and in high-speed mode (28.8 kbps or faster, JBIG). Only indicates the time for transmitting the image information and does not include the communication control time. The total communication time will vary depending on the contents of the document, the type of machine receiving the fax, and line condition.
*3: No. of FAX lines is up to 1 port. Port refers to number of channels for FAX.



Duplex Automatic Document Feeder

5330 4830

Original Size / Paper Weight Max: A4, Letter, Legal; Min: A5*1 60 to 128 gsm (In Duplex: 60 to 128 gsm)

Capacity*2
5330 100 sheets
4830 50 sheets

Scan Speed*3
5830 Copy (A4, Simplex) B/W: 53 ppm
4830 Copy (A4, Simplex) B/W: 48 ppm
5330 Scan B/W: 53 ppm, Colour: 53 ppm (1 pass, 2 sided scanning; B/W and Colour: 105 ppm) [Standard Document (A4), 200 dpi, to Folder]
4830 Scan B/W: 48 ppm, Colour: 48 ppm (1 pass, 2 sided scanning; B/W and Colour: 96 ppm) [Standard Document (A4), 200 dpi, to Folder]

*1: The minimum custom size is 139.7 x 139.7 mm.
*2: 80 gsm paper.
*3: The scanning speed varies depending on the documents.

See the Brochure for more information on options.
